NOMAD

COSMOS ADVENTURE SERIES

More Possibilities for the Road Ahead

13.8 kg-Class Complete Bike, 600 W Peak Assistance, 17 mounting points connecting commuting, touring and remote roads.

From CNY 14,999Buy Now

13.8kg+
Reference Complete-Bike Weight: 600W
Peak Assistance Power: 85N·m
Peak Torque: 120km+
Reference Range Under Specified Conditions: Approx. 120 min
Fast Charge to 80%

*Page figures are reference values for a specified build and test conditions. Weight excludes pedals, bottle cages, computer mounts and travel bags. Peak power does not represent continuous full-power output. Range, charging time and tire clearance vary with build, environment, use and measurement method; confirm the order and supplied bike.

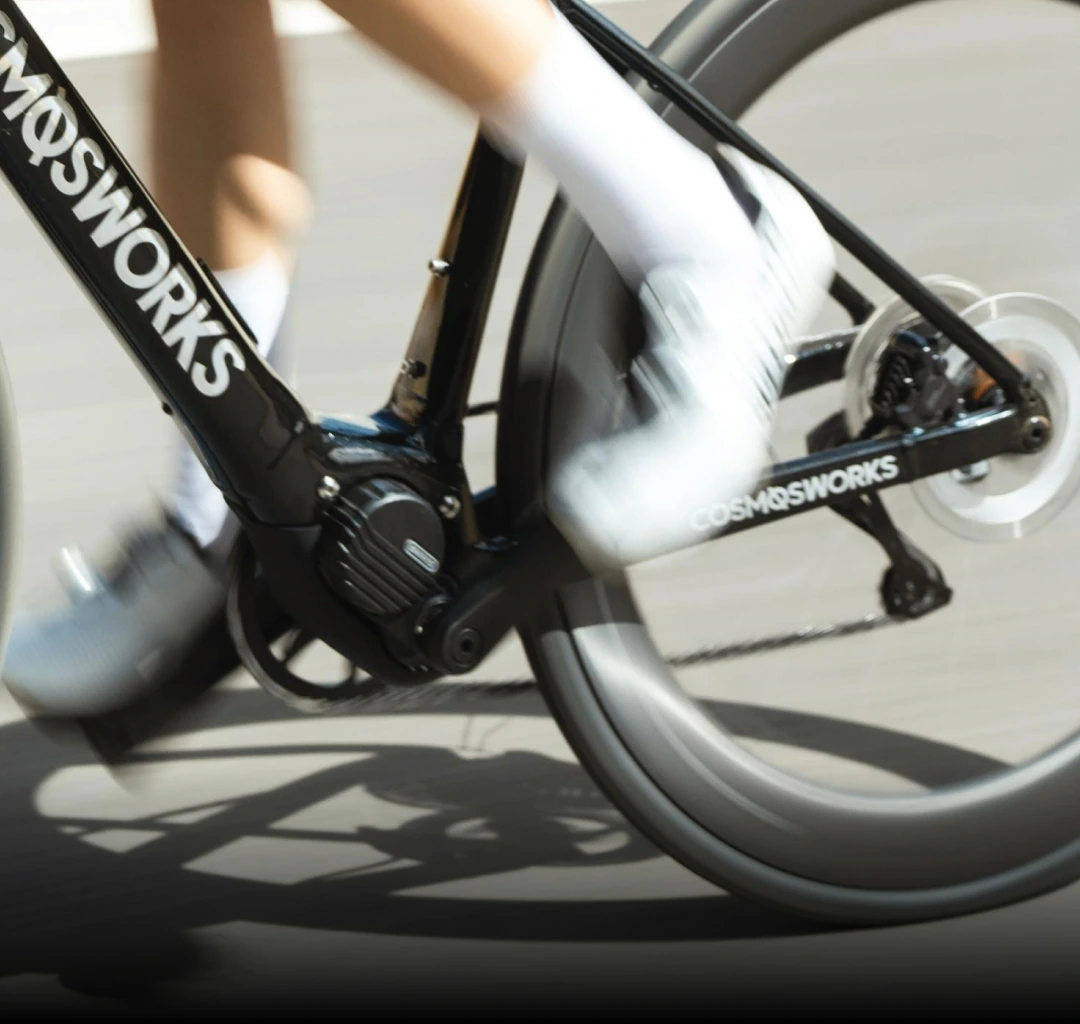

M820 PRO Ultralight, Intelligent Motor

250W
Rated Power: 600 W
Peak Assistance Power: 85N·m
Peak Torque: 2.3kg
Motor Weight

600 W

Peak Assistance Power

Approx. 14 kg

Lightweight Chassis

Approx. 120+ km in Assist Levels 1–2

Long Range at Low Assist

As Fast as 120 Minutes to 80% Charge

Fast Charging

Specifications & Test Notes

RANGE TEST CONDITIONS *Reference range: a 65 kg professional rider, no additional load, close-fitting cycling clothing, average speed 25 km/h, assist level 1, on a flat paved route. Actual range varies with assist level, rider and load, road and weather conditions, battery condition, tires and pressure, and riding habits. Final range depends on actual riding conditions. WEIGHT, POWER & CHARGING *Complete-bike weight is a reference value for a specified build and excludes pedals, bottle cages and computer mounts. Actual weight varies with frame size, build, batch and optional accessories; refer to the supplied bike. *Peak power and torque are reference values under specified conditions and do not represent continuous full-power output. Assistance varies with assist level, cadence, torque, battery charge, temperature, road conditions, rider weight and system protection strategies. *NOMAD reference time to 80% charge is 120 minutes. Charging slows progressively above 80%; actual time varies with remaining charge, temperature, battery condition and protection strategies.

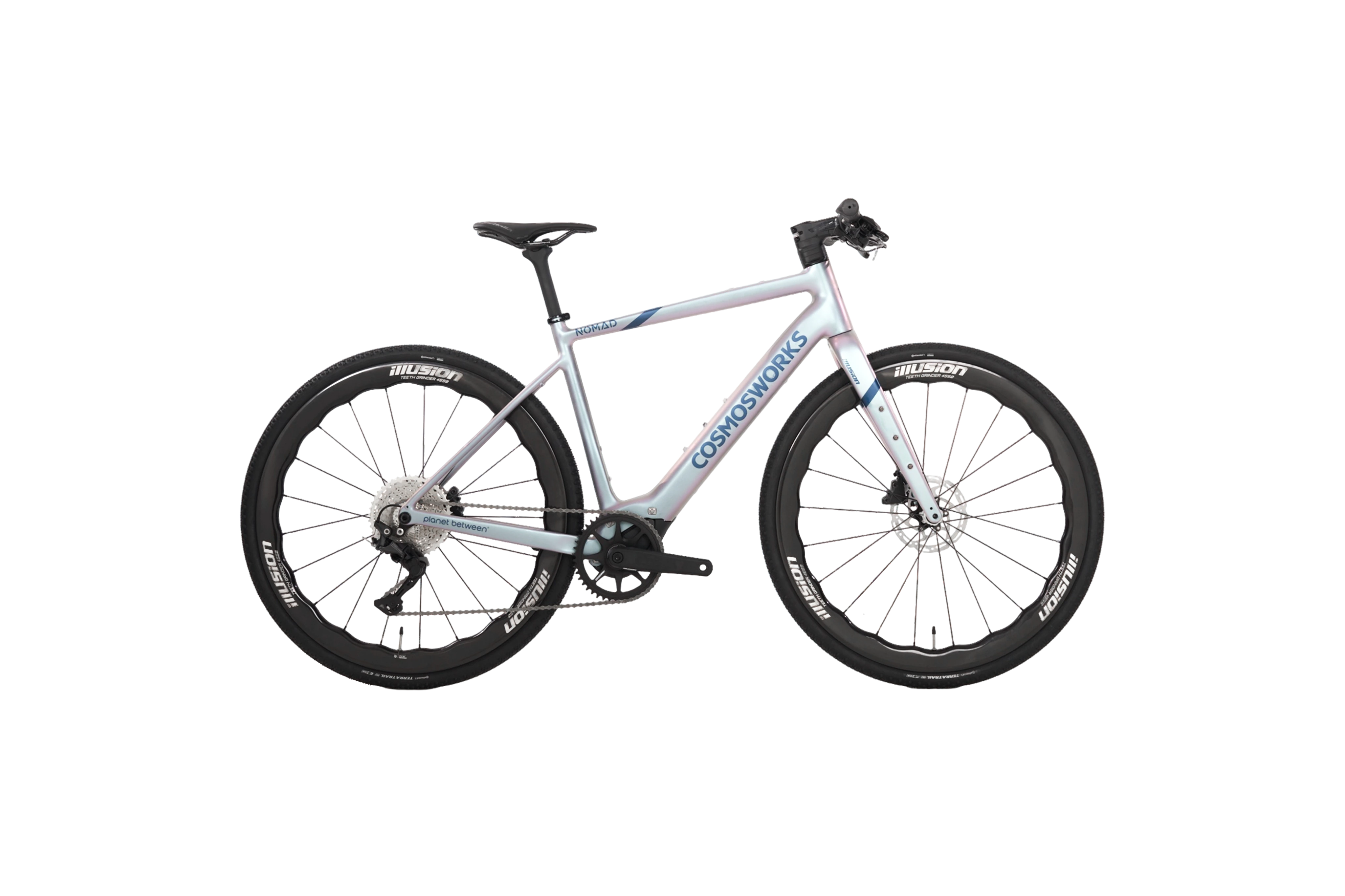

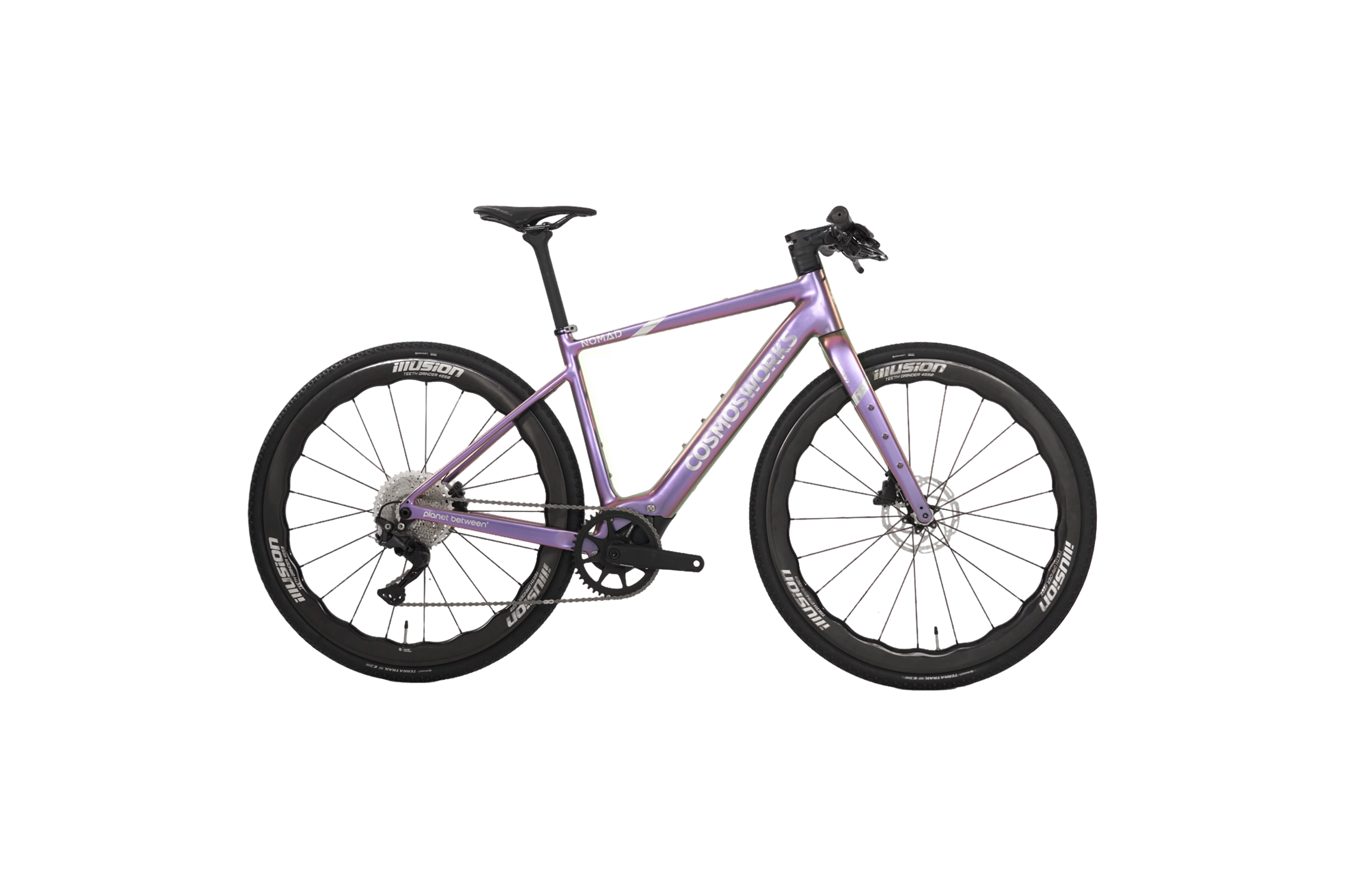

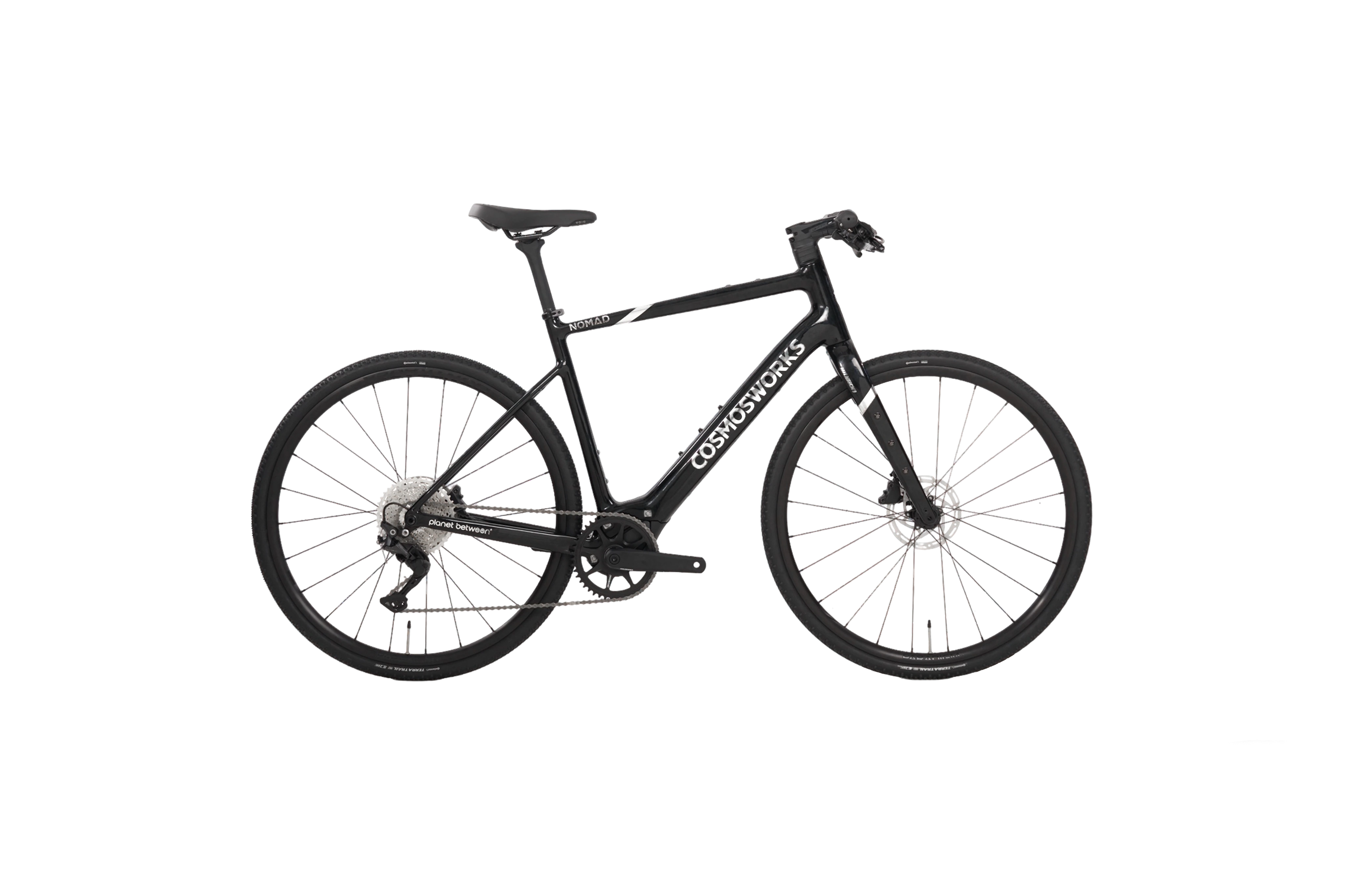

COLORWAYS

Three Signature Finishes

A dedicated paint line, with each frame hand-sprayed by specialist painters.

CHOOSE YOUR NOMAD

Build Versions

See the purchase page for the complete build list and current stock.

Alloy-Wheel Build

¥14,999

Build

Frame: Cosmosworks | Aircraft-Grade Aluminum Frame
Motor: BAFANG M820 PRO | 600 W / 85 N·m Mid-Drive Motor
Battery: DARK STAR 02 | 417 Wh Battery System
Display: BAFANG | Custom Color Display
Charger: Cosmosworks | 42 V Fast Charger
Shifting: SHIMANO CUES | 11-Speed Mechanical Shifting
Wheelset: BONTRAGER PARADIGM SL | Aluminum Wheelset
Handlebar: ILLUSION | Carbon Flat Handlebar
Fork: ILLUSION | Carbon Fork
Crankset: ILLUSION | High-Strength Alloy Crankset
Seatpost: ILLUSION | Carbon Seatpost
Saddle: SELLE ROYAL VAIA | Ventilated Silicone Saddle
Titanium-Alloy Parts: S-PARTS | Titanium-Alloy Motor Bolts
Tires: CONTINENTAL TERRA TRAIL | Low-Rolling-Resistance Gravel Tires

Carbon-Wheel Build

¥16,999

Build

Frame: Cosmosworks | Aircraft-Grade Aluminum Frame
Motor: BAFANG M820 PRO | 600 W / 85 N·m Mid-Drive Motor
Battery: DARK STAR 02 | 417 Wh Battery System
Display: BAFANG | Custom Color Display
Charger: Cosmosworks | 42 V Fast Charger
Shifting: SHIMANO CUES | 11-Speed Mechanical Shifting
Wheelset: ILLUSION 4550 | Carbon Wave-Profile Wheelset
Handlebar: ILLUSION | Carbon Flat Handlebar
Fork: ILLUSION | Carbon Fork
Crankset: ILLUSION | High-Strength Alloy Crankset
Seatpost: ILLUSION | Carbon Seatpost
Saddle: SELLE ROYAL VAIA | Ventilated Silicone Saddle
Titanium-Alloy Parts: S-PARTS | Titanium-Alloy Motor Bolts
Tires: CONTINENTAL TERRA TRAIL | Low-Rolling-Resistance Gravel Tires

*Build, price and specification figures are reference values for the current version. Confirm the order and supplied bike. Peak power and torque do not represent continuous full-power output. Charging time is a reference under specified conditions and varies with battery capacity, charger, remaining charge, temperature and protection strategies.

FIT & GEOMETRY

Geometry & Sizing

Four Sizes, Endurance Road Geometry Recommended Rider Height: approx. 157–188 cm.

Specifications / Sizing	S	M	L	XL
Recommended Rider Height	157–170cm	168–176cm	176–182cm	182–188cm
Cf	430	470	500	530
Reach	382	391	404	416
Stack	553	569	588	611
O	530	544	563	581
WB	1030	1040	1060	1080
BB Drop	80	80	80	80
C	430	430	430	430
Fork Rake	55	55	55	55
Fork Length	405	405	405	405
Ss°	70.5°	71°	71°	71°
Hs	115	130	150	175
Sc°	74°	74°	74°	74°

*Geometry is in mm except for angles. Sizing is a guide only; confirm the fit using height, inseam, reach, flexibility, riding position and personal preference. Refer to the supplied bike.

Set Out with More to Explore.

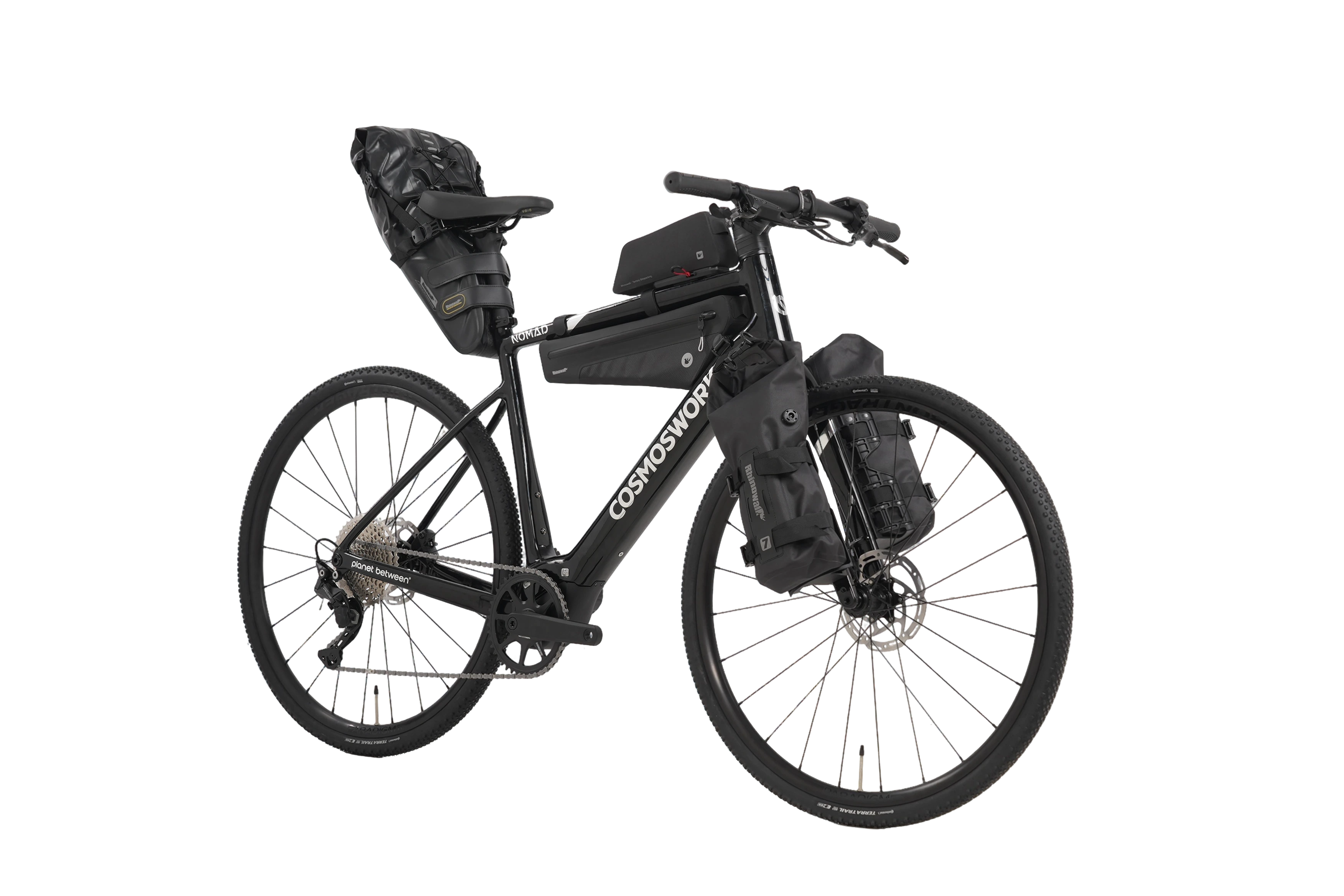

NOMAD’s cargo system includes 17 rack mounts and mounting points for different riding situations.

Bike System

Internal Cable Routing FSA ACR SYSTEM

NOMAD uses FSA’s latest ACR aerodynamic routing system to integrate cockpit cables, reduce drag and improve aerodynamic efficiency, helping extend range.

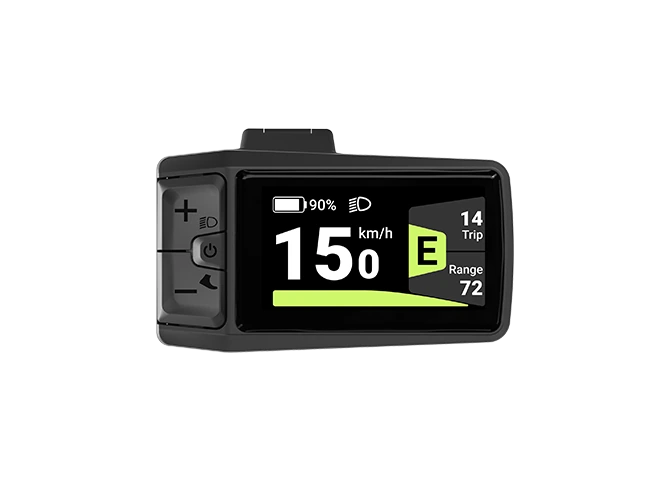

Color Smart Display BAFANG

The display records speed, distance and other ride data in real time, and analyzes power and cadence. Know your ride and enjoy it. Adjust assist levels without taking your hands off the handlebar. (The display has no lighting function; provide your own bike light.)

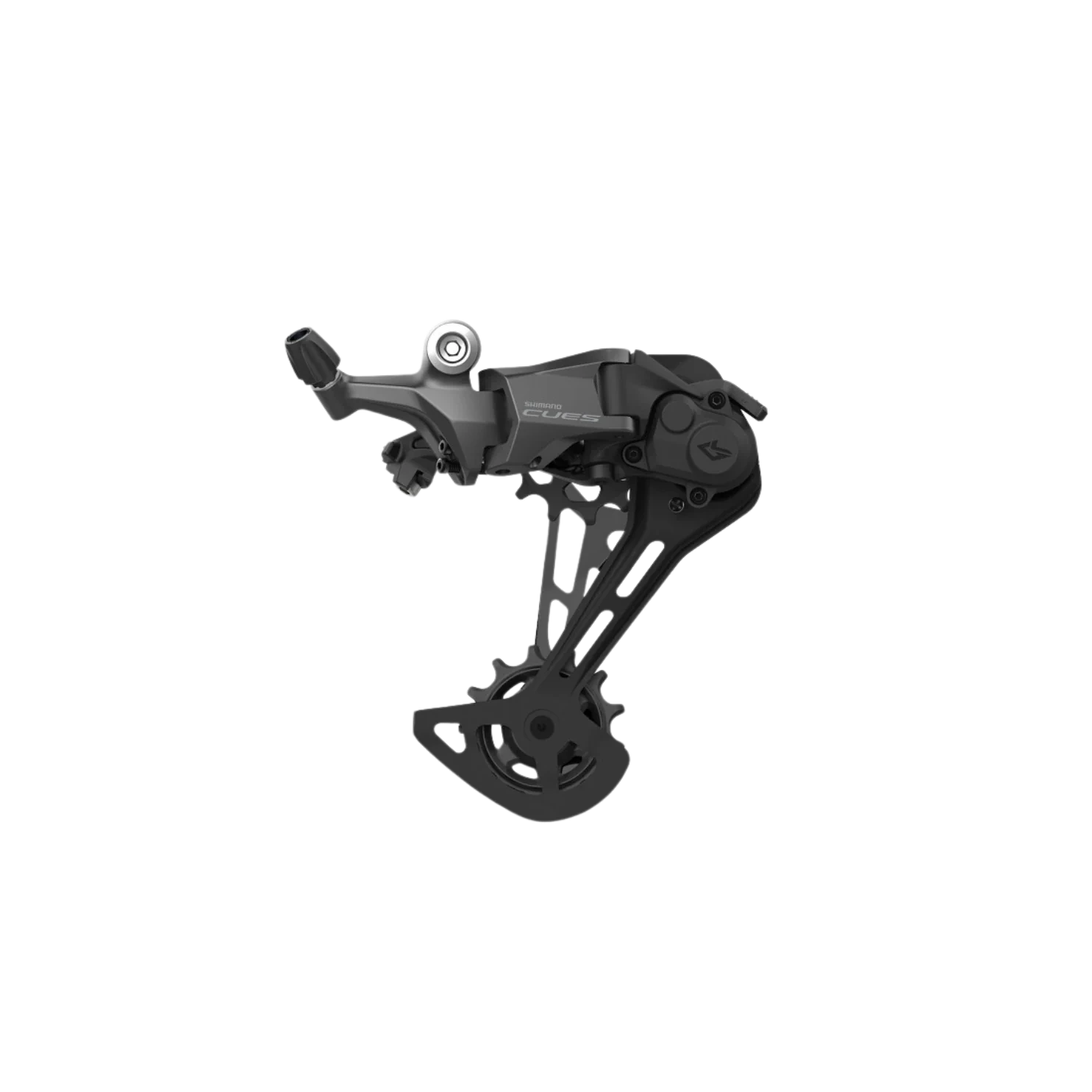

Core Shifting from SHIMANO

NOMAD uses a SHIMANO shifting system for a proven, dependable drivetrain experience.

E-Bikes Expand the Map of Exploration.

Over the past three years, Cosmosworks riders have traveled across Everest Base Camp, the Qiangtang wilderness, the Kunlun Mountains and Lop Nur. The founder has tested the bikes in demanding environments, covering more than 20,000 km. His riding map is being followed and extended by more and more e-bike riders.
