VAPOR Super Light

COSMOS PERFORMANCE SERIES

A lightweight structure that balances stiffness and vibration damping.

From 9.9 kg, based on a specified build. Reference complete-bike weight: approx. 9.9–11.8 kg.

From CNY 29,999Buy Now

9.9kg+
Reference Complete-Bike Weight: 600W
Peak Assistance Power: 85N·m
Peak Torque: 150km
Reference Range at Low Assist Levels: Approx. 100 min
Reference Time to 80% Charge

*Figures are reference values for specified builds and test conditions. Actual bike and use conditions may vary.

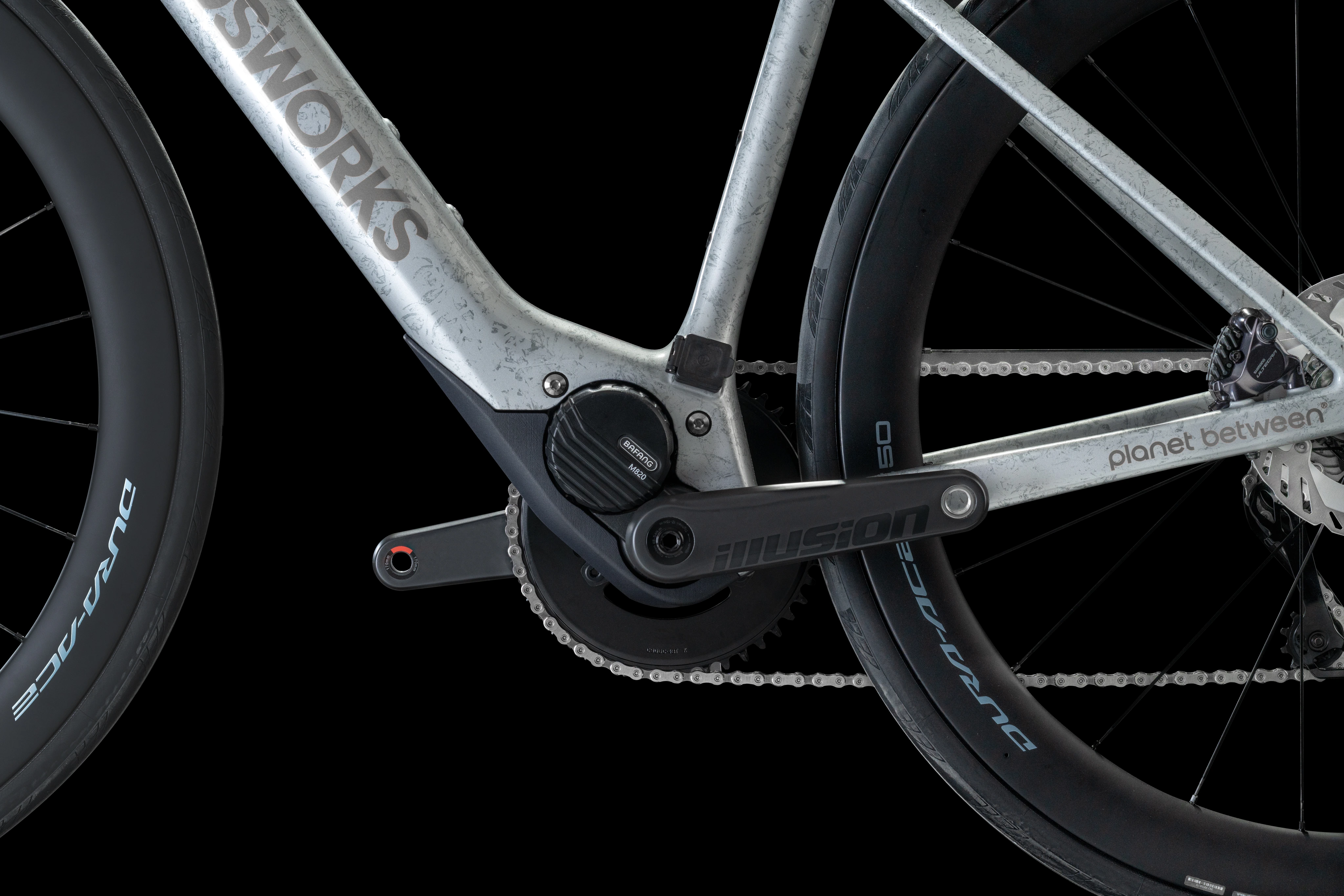

M820 PRO Ultralight, Intelligent Motor

250W
Rated Power: 600W
Peak Assistance Power: 85N·m
Peak Torque: 2.3kg
Reference Motor Weight

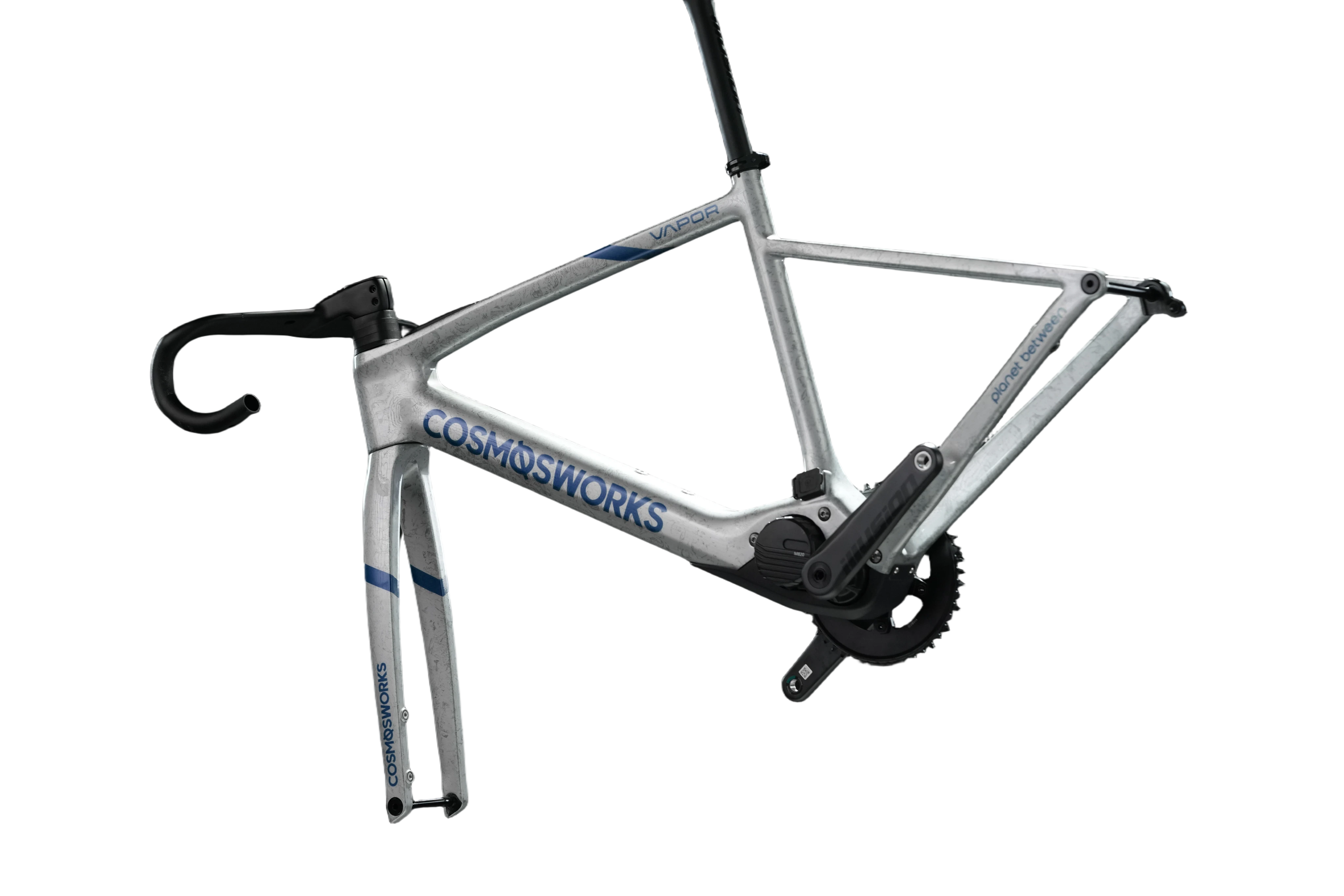

T800 + T1000 Carbon-Fiber Frame

A lightweight structure that balances stiffness and vibration damping.

From 9.9 kg

The lightweight design makes riding and handling the bike easier.

600 W Peak Assistance Power

More Direct Launch Response

Approx. 135 km in Assist Levels 1–2

When the battery runs low, keep pedaling without assistance.

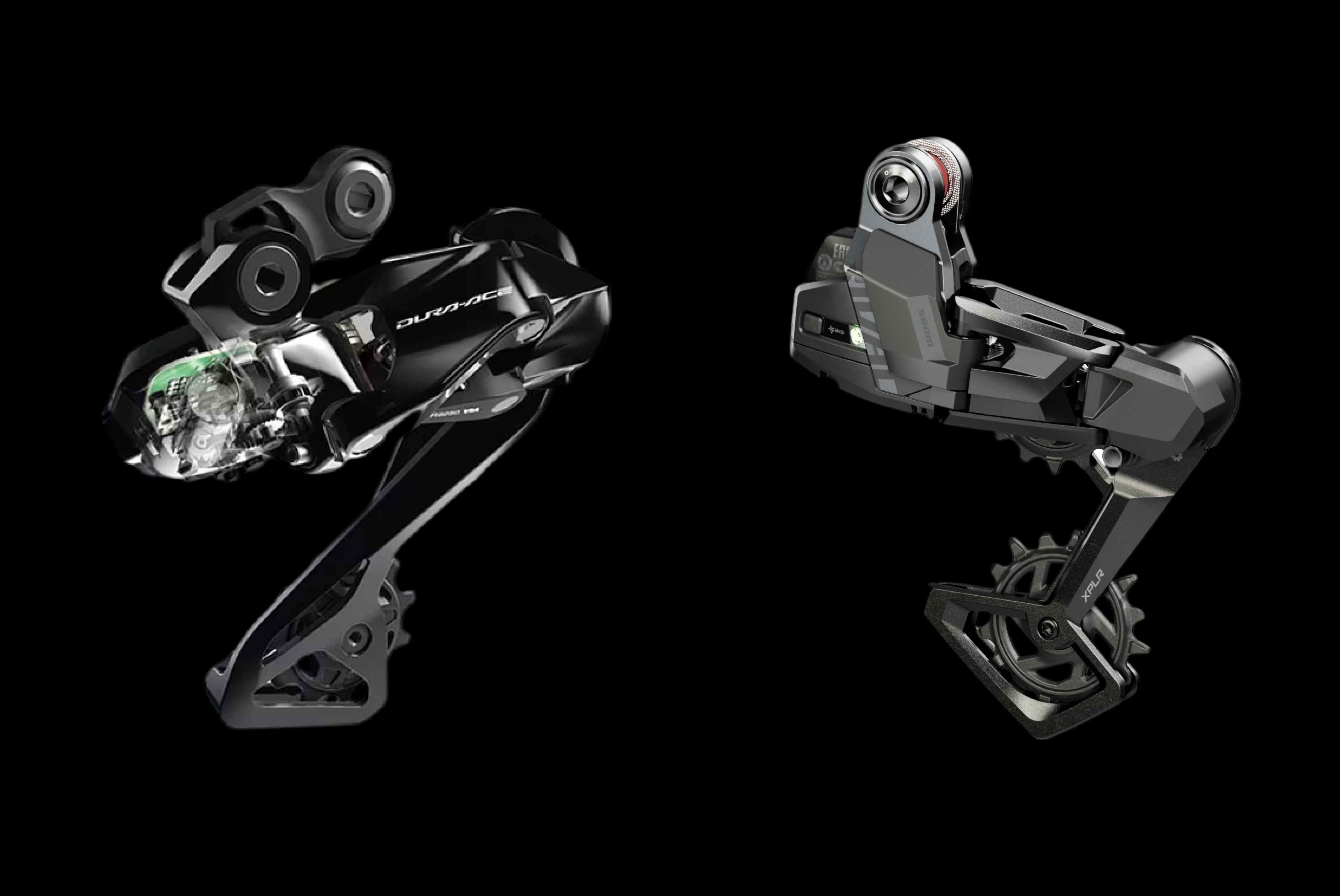

SHIMANO｜SRAM

12- or 13-Speed Builds Available

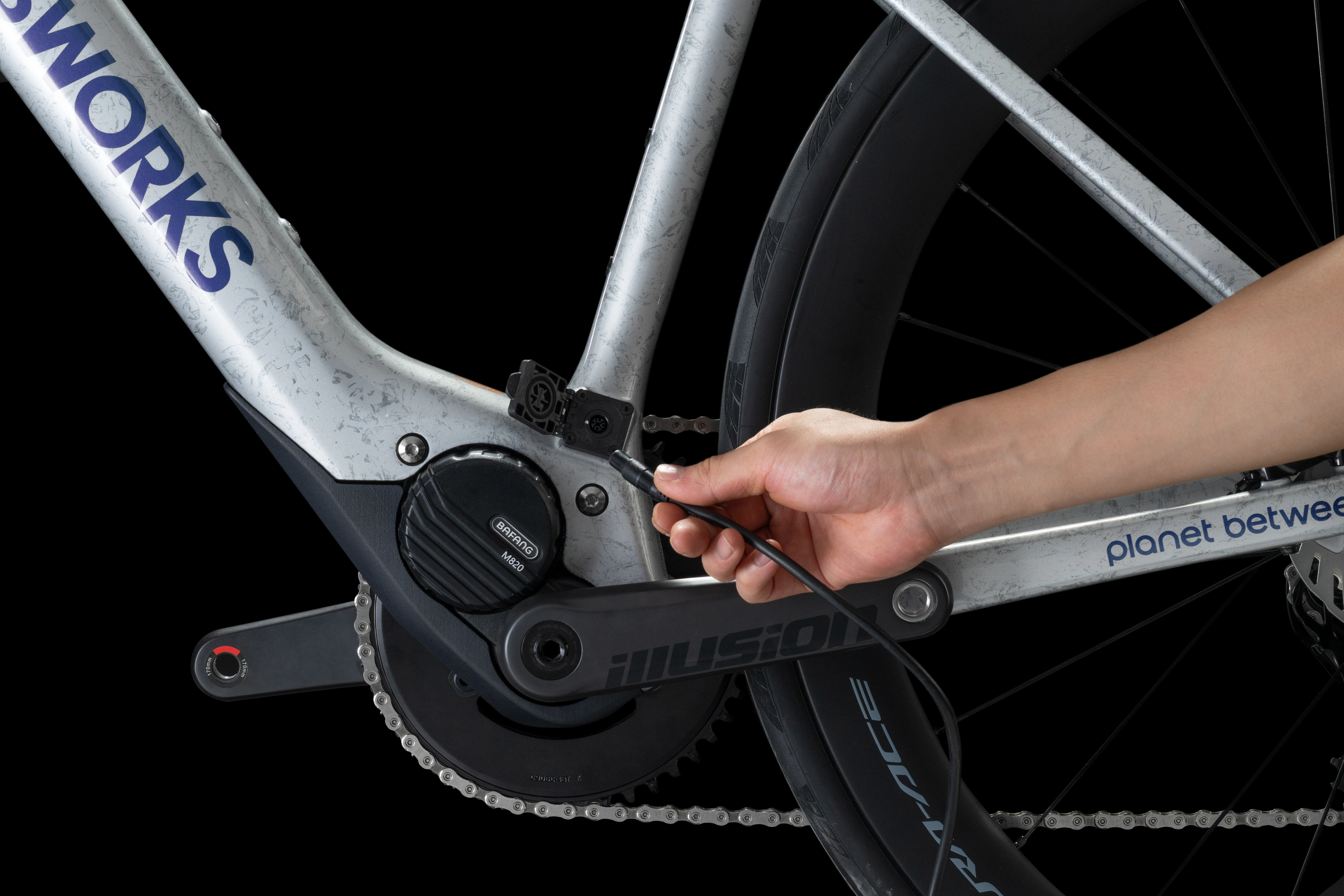

As Fast as 100 Minutes to 80% Charge

Fast Charging

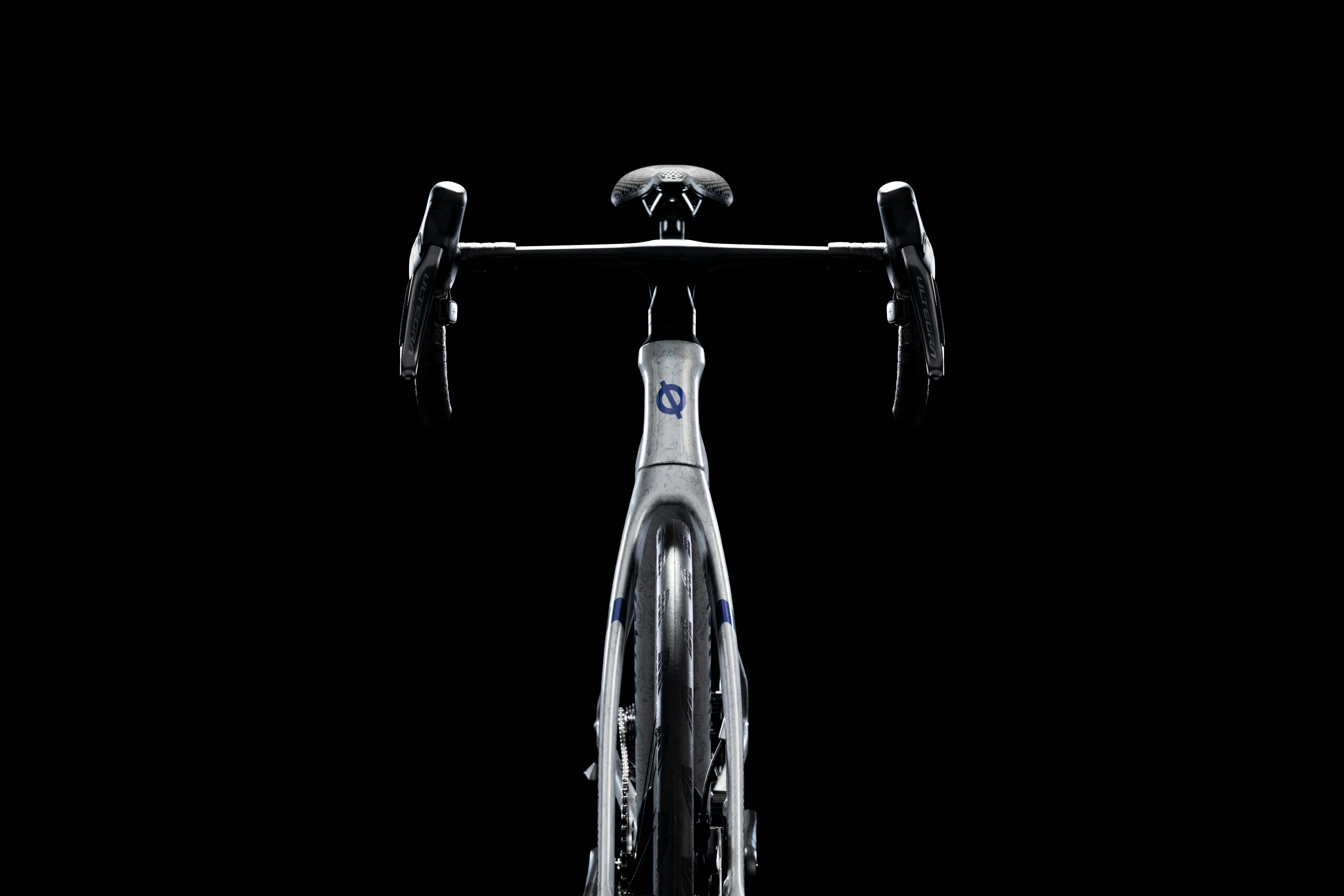

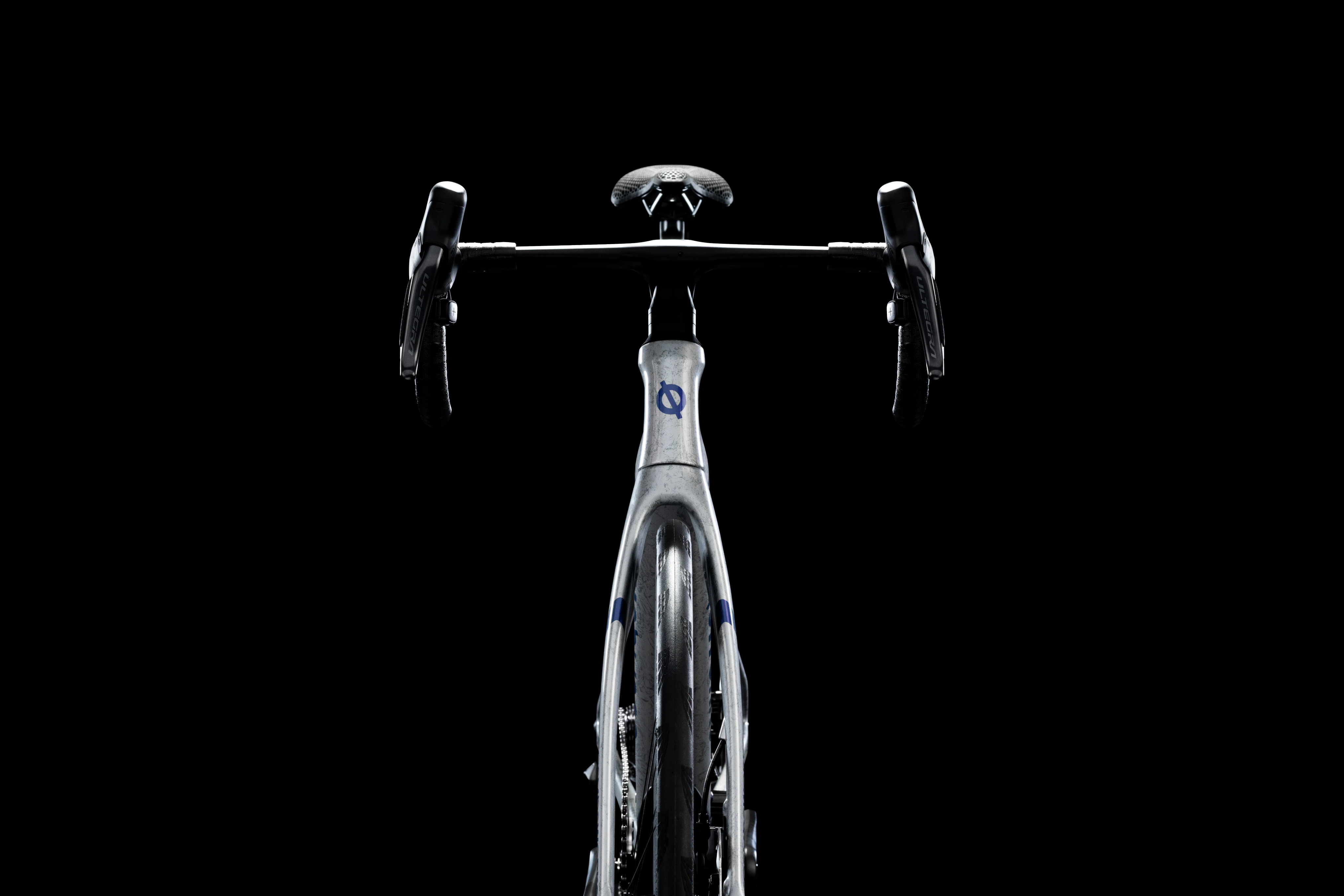

Integrated Handlebar and Fully Internal Cable Routing

Aerodynamic Exterior Design

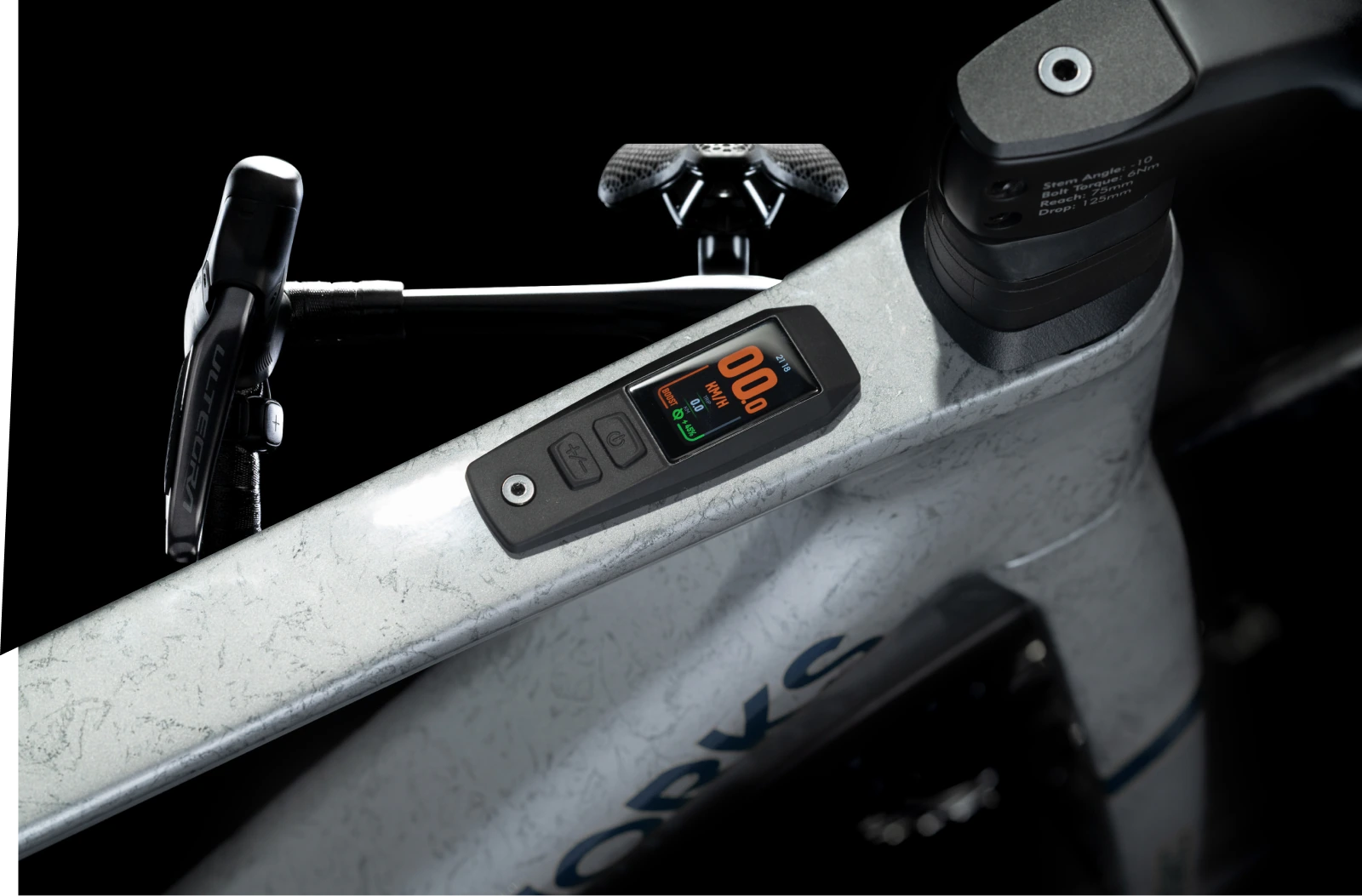

Integrated Smart Display

Quick Switching Between Five Assist Levels

Specifications & Test Notes

MOTOR VAPOR Super Light uses the BAFANG M820 PRO drive unit. Advanced sensors and built-in control algorithms adjust assistance to your cadence and pedaling effort in real time. *Peak power and torque are reference values under specified conditions and do not represent continuous full-power output. Assistance varies with assist level, cadence, torque, battery charge, temperature, road conditions, rider weight and system protection strategies. FRAME & WEIGHT *The frame-weight reference is based on a specified build. Actual weight varies with frame size, finish, production batch and measurement method. *Reference complete-bike weight is approx. 9.9–11.8 kg, measured on a specified size and build. Pedals, bottle cages, computer mounts and other accessories are generally excluded. Actual weight varies with size, build, finish, accessories and weighing method; refer to the supplied bike. POWER & RANGE *Peak power is a reference value under specified conditions and does not represent continuous full-power output. Assistance varies with rider weight, assist level, battery charge, temperature, road conditions and system protection strategies. *Range test conditions: a 65 kg professional rider, no additional load, close-fitting cycling clothing, average speed 25 km/h, assist level 1, on a flat paved route. Actual range varies with assist level, rider and load, road and weather conditions, available battery energy, tires, pressure and riding habits. Final range depends on actual riding conditions. DRIVETRAIN, CHARGING & CONTROLS Depending on the version, the bike uses a SHIMANO or SRAM shifting system; confirm the exact build on the order and the bike delivered. 417 Wh battery, with 4 A or 6 A charger options. *With a 6 A charger, the reference 0–80% time is approx. 90–100 minutes; with a 4 A charger, approx. 130–145 minutes. Charging slows in the 80–100% stage as protective top-up current is applied. Actual time varies with the build and conditions. Fully internal cable routing. Concealed control buttons.

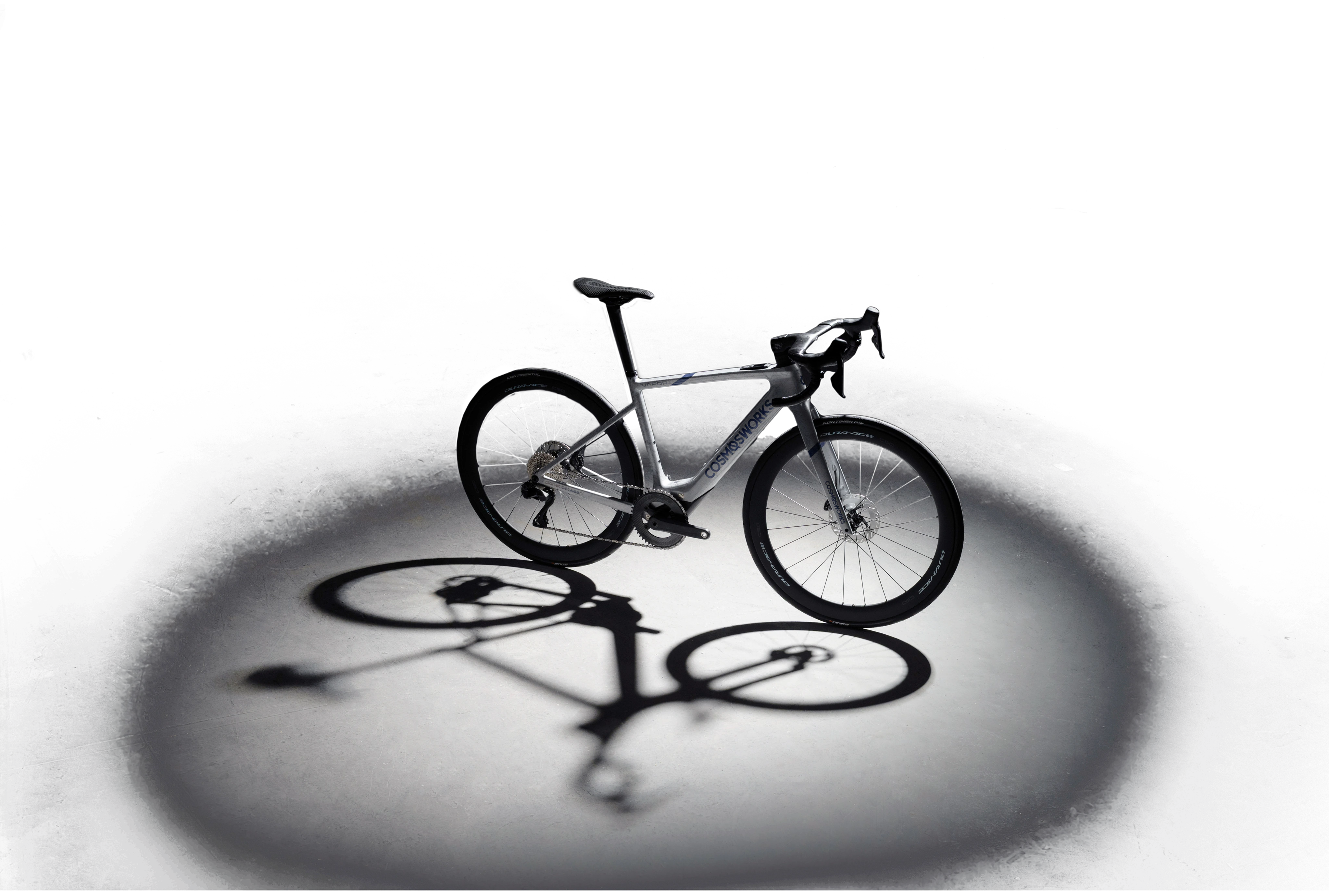

FIT & GEOMETRY

The Right Size Unlocks the Full Performance.

Four sizes: S, M, L and XL. Recommended rider height: approx. 157–188 cm. Before ordering, confirm sizing using your height, inseam and riding position.

Specifications / Sizing	S	M	L	XL
Recommended Rider Height	157–170cm	168–180cm	175–185cm	178–188cm
Cf	440	470	500	515
Reach	379	391	405	418
Stack	548	554	575	589
O	525	540	559	577
WB	1020	1030	1046	1064
BB Height	270	270	270	270
BB Drop	80	80	80	80
C	425	425	425	425
Fork Rake	55	55	55	55
Fork Length	405	405	405	405
Ss°	70.5	71	71.5	71.5
Hs	110	115	135	150
Sc°	74	74	74	74
Trail	66	62	59	59

CHOOSE YOUR BUILD

Build Specifications

Six Factory Builds. Ready to Ride.

Standard on All Builds

Frame: Cosmosworks | Carbon-Fiber Frame
Fork: ILLUSION | Carbon Fork
Display: VELOFOX | Custom Integrated Color Display
Motor: BAFANG M820 PRO | 600 W / 85 N·m Mid-Drive Motor
Battery: DARK STAR 02 | 417 Wh In-House-Developed Battery
Charger: Cosmosworks | Fast Charger

ELITE

Official Retail Price

¥29,999

Build

Shifting: SHIMANO 105 Di2 | 12-Speed Electronic Shifting
Wheelset: ILLUSION TEETH GRINDER 4550 | Carbon Wave-Profile Wheelset
Tires: CONTINENTAL GP TR | Low-Rolling-Resistance Tubeless Tires
Crankset: ILLUSION | High-Strength Alloy Crankset
Chainrings: ILLUSION | 44T Alloy Chainring
Integrated Handlebar: ILLUSION | Integrated Carbon Handlebar and Stem
Seatpost: ILLUSION | Carbon Seatpost
Saddle: Selle Italia Model X | Endurance Comfort Saddle
Titanium-Alloy Parts: S-PARTS | Titanium-Alloy Motor Bolts

PRO

Official Retail Price

¥34,999

Build

Shifting: SRAM RIVAL XPLR AXS | 13-Speed Electronic Shifting
Wheelset: ILLUSION TEETH GRINDER C40/C50 | Carbon Aero Wheelset
Tires: CONTINENTAL GP TR | Low-Rolling-Resistance Tubeless Tires
Crankset: ILLUSION | High-Strength Alloy Crankset
Chainrings: ILLUSION | 44T Alloy Chainring
Integrated Handlebar: ILLUSION | Integrated Carbon Handlebar and Stem
Seatpost: ILLUSION | Carbon Seatpost
Saddle: Selle Italia Model X | Endurance Comfort Saddle
Titanium-Alloy Parts: S-PARTS | Titanium-Alloy Motor Bolts

MAX

Official Promotional Price

~~¥36,999~~¥32,999

Build

Shifting: SHIMANO ULTEGRA Di2 | 12-Speed Electronic Shifting
Wheelset: SHIMANO DURA-ACE C60 (9270 Series) | Carbon Aero Wheelset
Tires: CONTINENTAL GP TR | Low-Rolling-Resistance Tubeless Tires
Crankset: ILLUSION | High-Strength Alloy Crankset
Chainrings: ILLUSION | 44T Alloy Chainring
Integrated Handlebar: ILLUSION | Integrated Carbon Handlebar and Stem
Seatpost: ILLUSION | Carbon Seatpost
Saddle: Selle Italia Model X | Endurance Comfort Saddle
Titanium-Alloy Parts: S-PARTS | Titanium-Alloy Motor Bolts

MAX

Official Launch Price

¥39,999

Build

Shifting: SHIMANO ULTEGRA Di2 | 12-Speed Electronic Shifting
Wheelset: SHIMANO DURA-ACE C50 (9370 Series) | Carbon Aero Wheelset
Tires: MICHELIN Power Cup TLR | Low-Rolling-Resistance Tubeless Tires
Crankset: ILLUSION | High-Strength Alloy Crankset
Chainrings: ILLUSION | 44T Alloy Chainring
Integrated Handlebar: ILLUSION | Integrated Carbon Handlebar and Stem
Seatpost: ILLUSION | Carbon Seatpost
Saddle: Selle Italia Model X | Endurance Comfort Saddle
Titanium-Alloy Parts: S-PARTS | Titanium-Alloy Motor Bolts

MASTER

Official Launch Price

¥49,999

Build

Shifting: SHIMANO DURA-ACE Di2 | 12-Speed Electronic Shifting
Wheelset: SHIMANO DURA-ACE C50 (9370 Series) | Carbon Aero Wheelset
Tires: MICHELIN Power Cup TLR | Low-Rolling-Resistance Tubeless Tires
Crankset: ILLUSION | Carbon Crankset
Chainrings: ILLUSION | 48T Carbon Chainring
Integrated Handlebar: ILLUSION | Integrated Carbon Handlebar and Stem
Seatpost: ILLUSION | Carbon Seatpost
Saddle: SELLE ITALIA SLR BOOST 3D | Premium 3D-Printed Saddle
Titanium-Alloy Parts: S-PARTS | Titanium-Alloy Motor and Bottle-Cage Bolts

ULTRA

Official Retail Price

¥65,999

Build

Shifting: SHIMANO DURA-ACE Di2 | 12-Speed Electronic Shifting
Wheelset: PRINCETON WAKE 6560 | Carbon Wave-Profile Wheelset
Tires: MICHELIN POWER CUP TLR | Low-Rolling-Resistance Tubeless Tires
Crankset: ILLUSION | Carbon Crankset
Chainrings: ILLUSION | 48T Carbon Chainring
Integrated Handlebar: DEDA ALANERA RS | Integrated Carbon Handlebar and Stem
Seatpost: ILLUSION | Carbon Seatpost
Saddle: SELLE ITALIA SLR BOOST 3D | Premium 3D-Printed Saddle
Titanium-Alloy Parts: S-PARTS | Titanium-Alloy Motor and Bottle-Cage Bolts

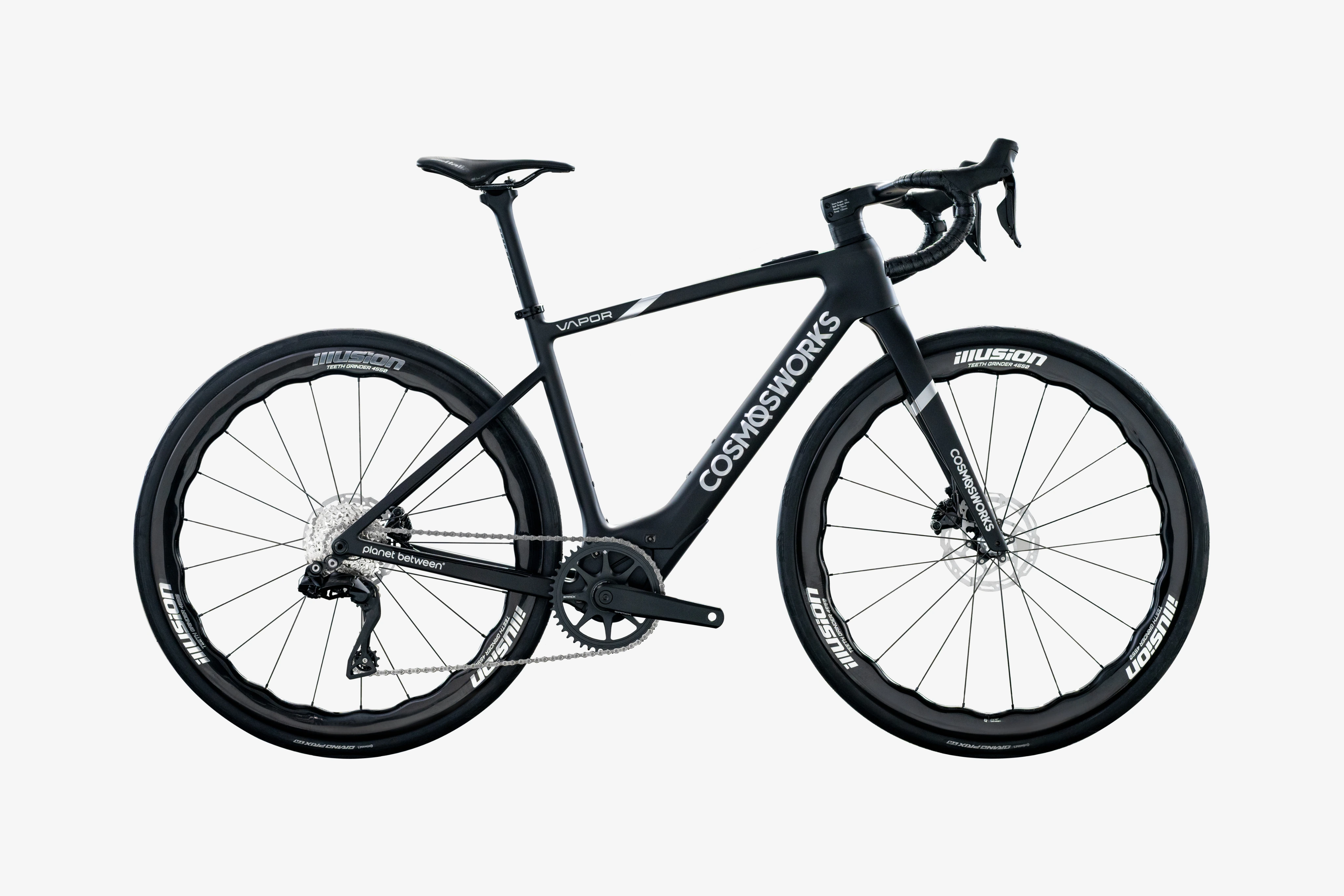

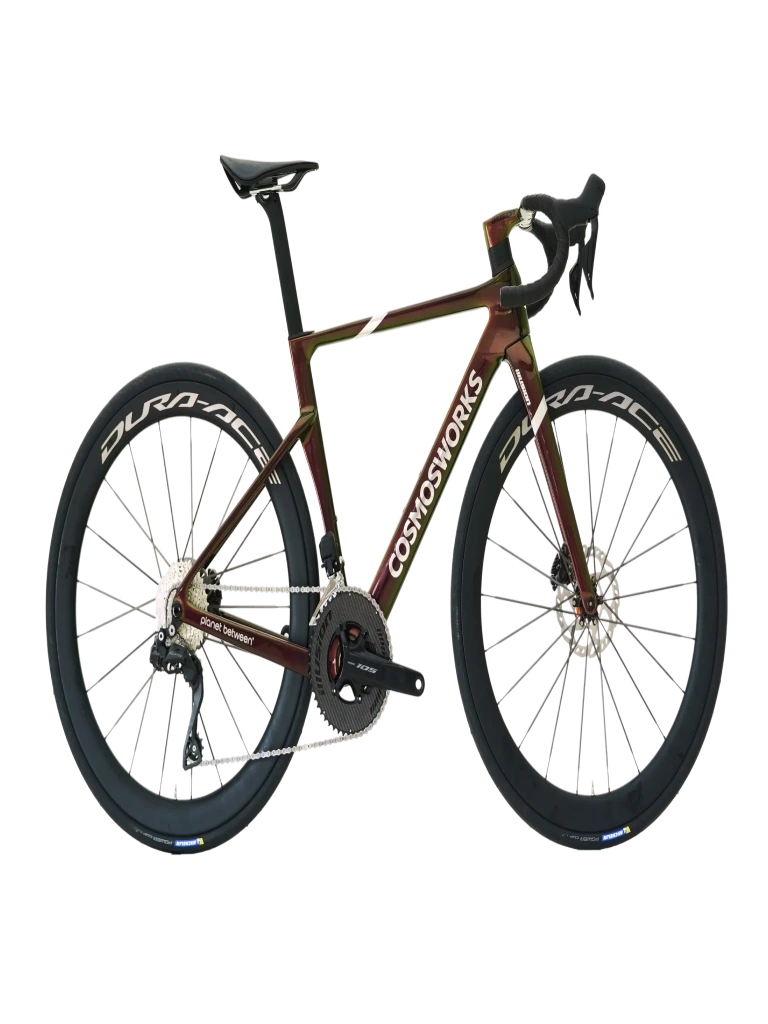

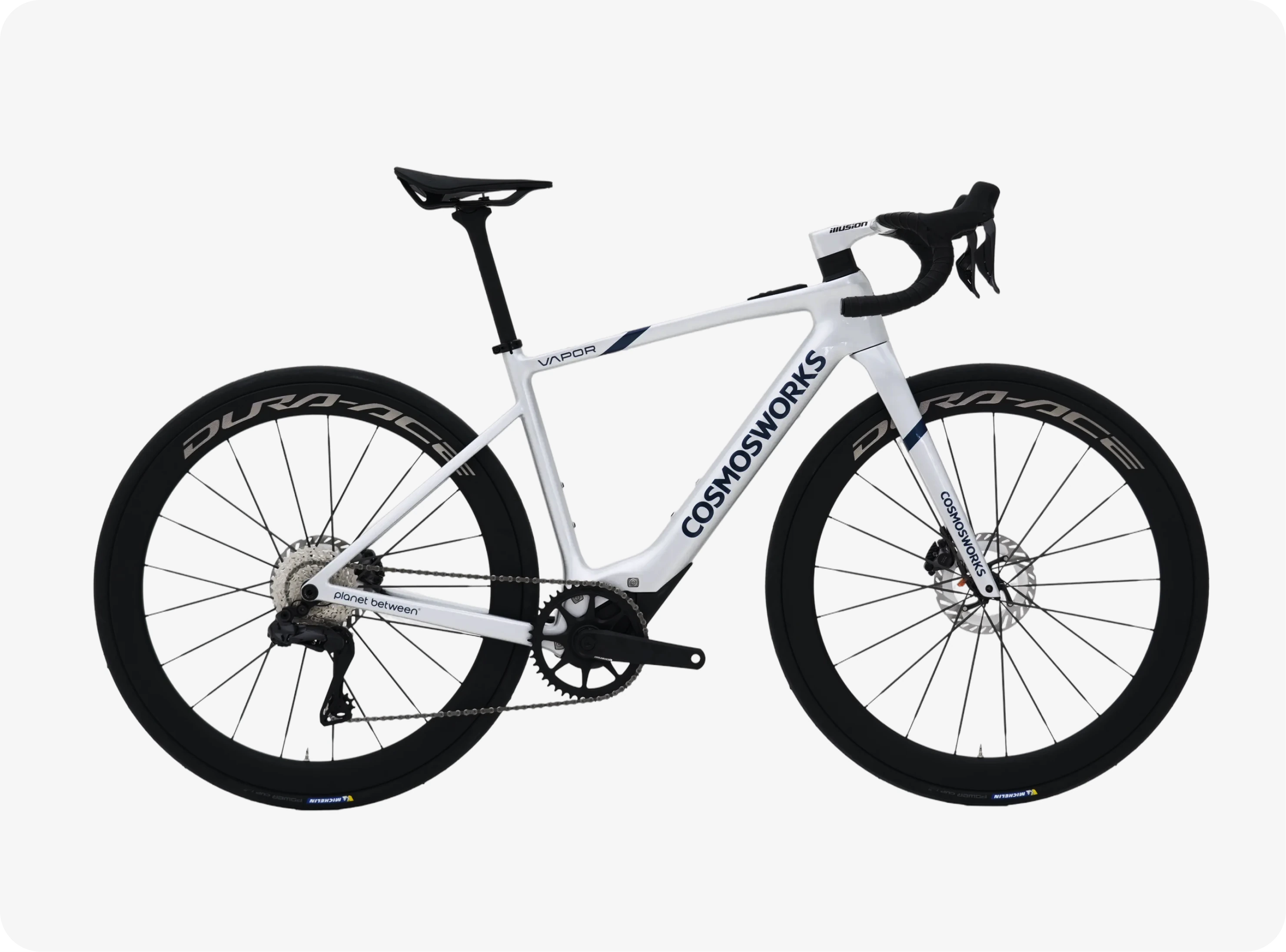

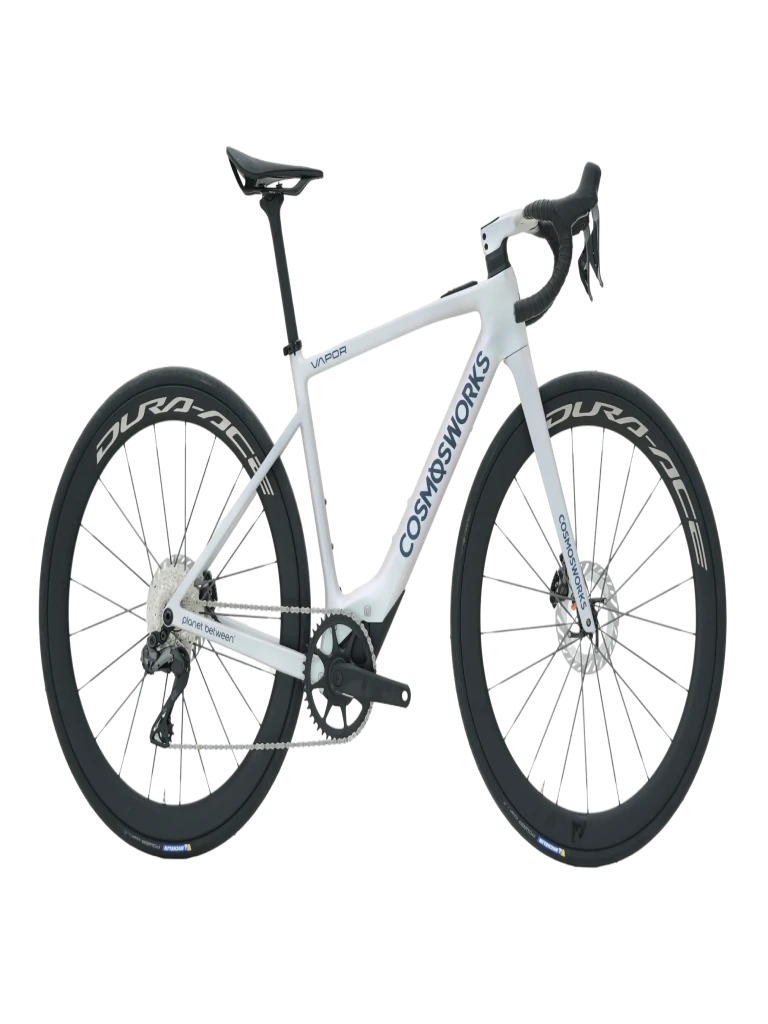

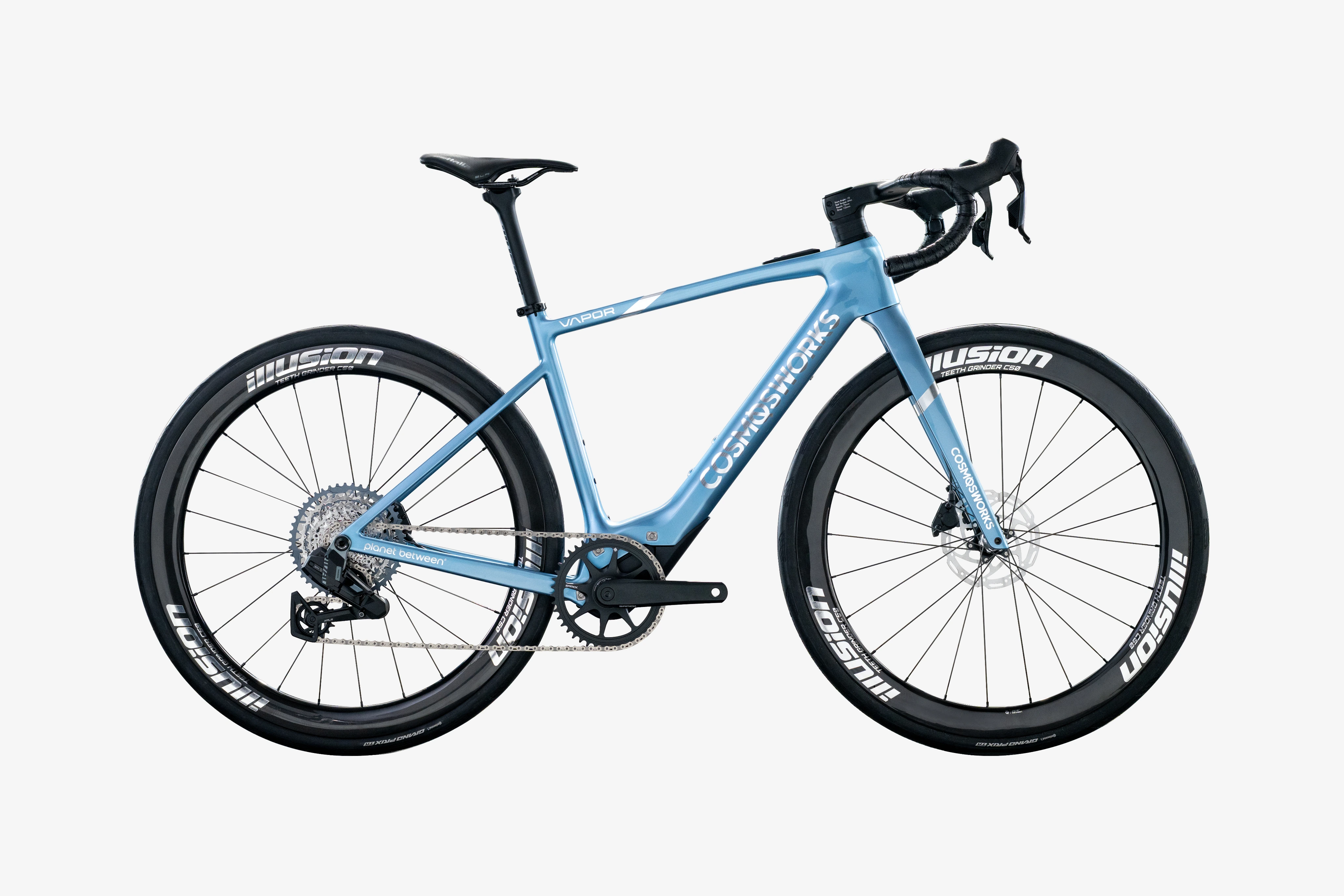

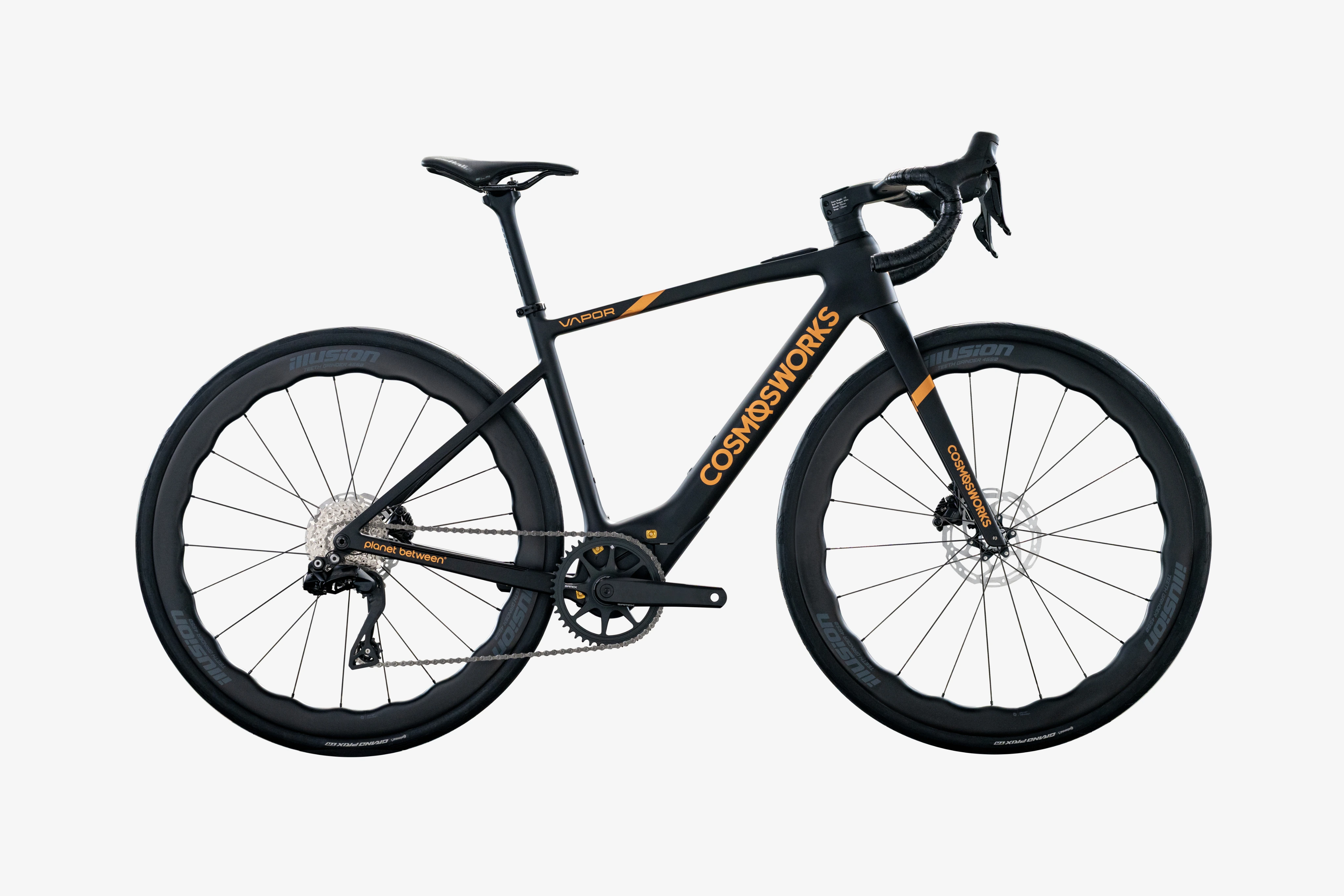

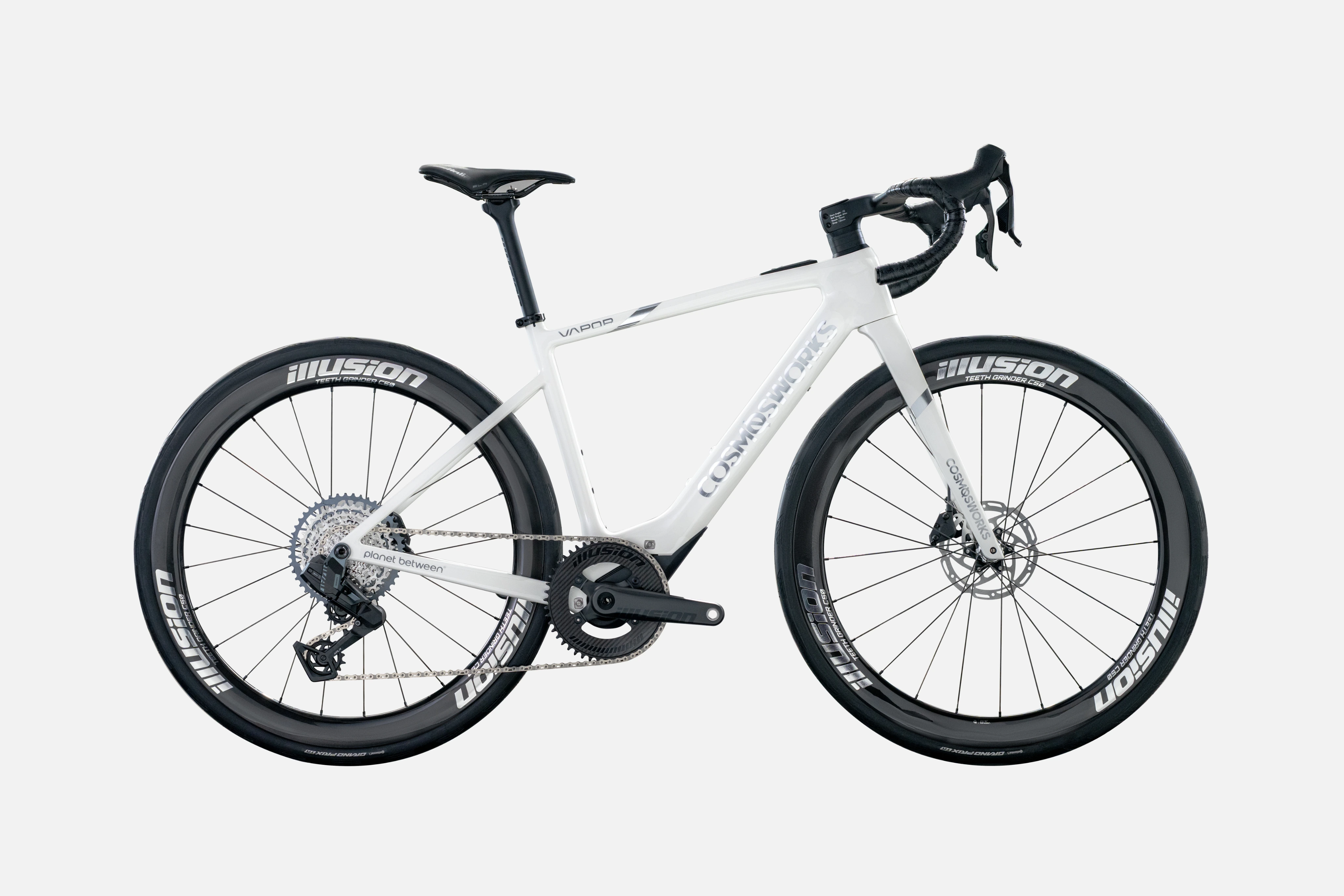

COLORWAYS

Themed Finishes

Stardust is a limited seasonal finish and carries an additional customization fee. Contact customer support for details.

Use Conditions & Standards

Maximum Load: 120 kg

Rider and Carrying Gear Included

Up to 42C Tire Clearance

Compatible with Gravel Tires

IPX6 Protection Rating

Protection Against Splashing in Everyday Riding

-20~45°C

Operating Temperature Range

EMC / ISO13849

Electronic-System Safety Standards

4× EN 15194

Frame Fatigue Testing

Use Conditions & Standards — Notes

IPX6 PROTECTION An IPX6 rating indicates protection against powerful water jets in everyday rain and splash conditions. It does not mean the bike can be submerged, soaked, pressure-washed or stored in a persistently damp environment. After riding in rain or exposure to moisture, dry the bike and confirm that the charging port, battery connector, display and cable connectors are dry before charging or storing it. TEMPERATURE RANGE The reference ambient range is –20°C to 45°C. This does not recommend long-term use or storage in extreme temperatures. Cold reduces lithium-battery activity and may shorten range, reduce assistance or slow charging. Heat may affect battery life and system stability. ELECTRONIC CONTROL & CERTIFICATION EMC (electromagnetic compatibility) helps equipment operate normally in its electromagnetic environment without interfering with other devices. ISO 13849 is an international standard for the design and integration of safety-related control systems. The applicable standards, tests and certifications vary with components, system, sample version and complete-bike build; refer to supplier documentation, test reports and the actual certification scope. FRAME FATIGUE TESTING Before mass production, every Cosmosworks frame passes fatigue testing at four times the EN 15194 standard. Refer to the test report for conditions and scope.
